Hybrid SC To LC Fiber Adapter Metal Body Ceramic Sleeve Offering Flexibility

Name: Hybrid SC To LC Fiber Adapter Metal Body Ceramic Sleeve Offering Flexibility
Brand: OMC or OEM or No brand
Price: 1 USD

Wholesale Hybrid SC To LC Fiber Adapter Metal Body Ceramic Sleeve Offering Flexibility from china suppliers

Brand Name : OMC or OEM or No brand

Model Number : SC to LC SM Simplex Metal adapter

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : MoneyGram, Western Union, T/T, alipay, credit card, paypal

Supply Ability : 10000pcs per week

Delivery Time : 2-3 working days

Packaging Details : blister box

Connector port1 : SC UPC

Connector port 2 : LC UPC

Sleeve : 2.5mm to 1.25mm ID Ceramic sleeve

Insertion loss : <0.2dB

Durability : <0.10 dB typical change, 500 matings

Temp : -40°C to + 80°C

Free samples : is available

OEM serivice : is available

Certification : ROHS and ISO

Contact Now

Hybrid SC UPC to LC UPC Fiber Optic Adapter SM Simplex IL< 0.2dB metal body ceramic sleeve

Optical Adapter are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.

OMC could supply standard types of Adapters, such as FC, SC, LC, ST, MU, E2000, MTRJ, MPO/MTP etc. Hybrid is also available.

OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.

Spec Performance

Connector Type	SC-LC	Polish Type	UPC
Fiber Counts	Simplex	Fiber Mode	Singlemode
Insertion Loss	≤0.2dB	Durability	≤0.1dB
Flammability Rate	UL94-V0	Working Temperature	-25~70°C

Application

Patch panels, ODF and other optical connections.

Optical networks demarcation and monitoring point

Products details

Hybrid SC To LC Fiber Adapter Metal Body Ceramic Sleeve Offering Flexibility

Product Tags:

single mode fiber adapter

fiber optic cable adapter

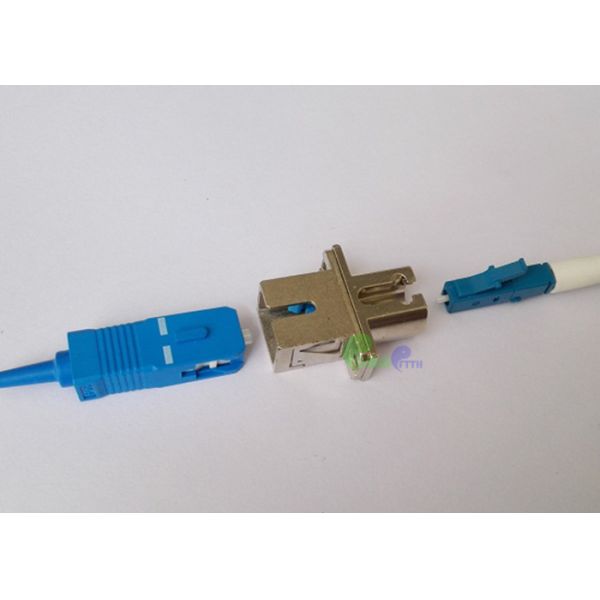

Hybrid SC To LC Fiber Adapter Metal Body Ceramic Sleeve Offering Flexibility Images
